Wanssum harbour | Building #4

30.000 m2 available for development

210.000 m²

18.000 m²

500 m²

GPR / BREAAM

Built to suit

Development

In the city of Wanssum an area development has started to extend the existing industrial harbour docks with 400 metres in length. A grand total of 210.000 m² of land is available for the realisation of logistics real estate. The city of Wanssum has adapted its zoning plan and now they allow for heights up to 15 metres to be built and a maximum plot-building size ratio of 70 %. The environmental classification allows up to category 3.2, which provides the opportunity to most industrial and logistics use.

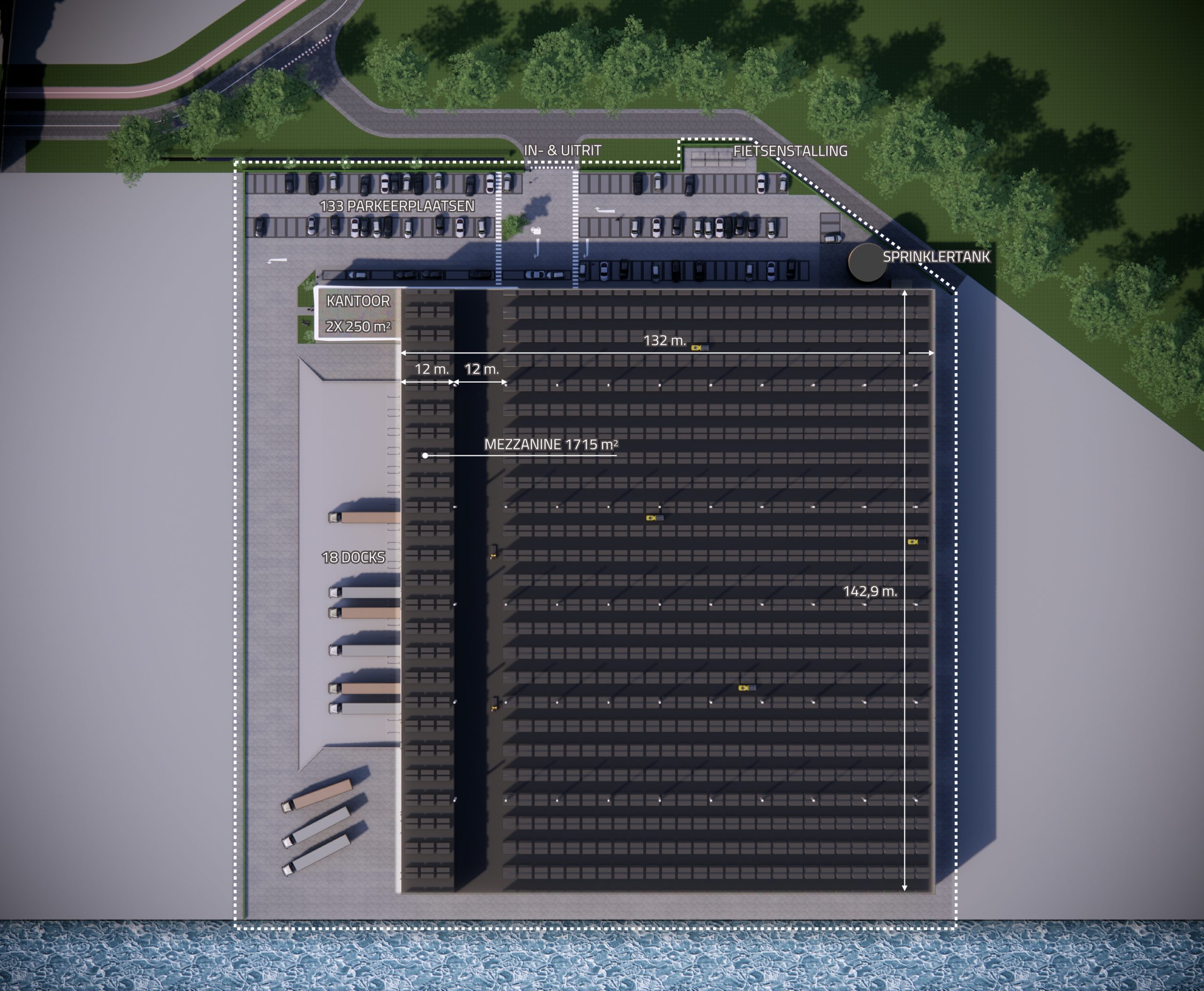

This Multimodal Logistics Park is devided in 4 seperate buildings. Building #4 is located at the North and comprises 1 unit with 18,140 sq. m. of warehouse, 1,715 sq. m of mezzanine and 500 sq. m of office space.

Dimensions

DescriptionUnit 1Total
Warehouse / Expedition18.140 m²
Mezzanine1.715 m²
Office500 m²
GLA20.533 m²
Site29,944 m²
Plot size210.000 m²

Location

Wanssum is located next to the river Maas in the Dutch province of Limburg. It´s only 6,5 kilometres away from motorway A73 and has national and international airports within an hour reach. The close proximity to Venlo makes it suitable for transhipment logistics and provides a valuable alternative to the overcrowded inland terminal in Venlo. The park provides a solid, futureproof and modular setup which allows you to adapt to your logistics business requirements.

Technical specifications

Warehouse
Free height: 12.20 m1 (Maximum storage height 12,10 m1)
Grid structure 12x22,8 m1
Lighting systemStorage area: LED lighting 150 lux and expedition area: 250 lux;
Power sockets Ample AC power 230V and 400V;
Heating system Radiant heating panels;
Sprinkler systemCertified ESFR with fire alarm and smoke detection;
Fire regulationFire compartments in line with local regulations
Floor load capacity5.000 kg/m2
Point load capacity 8.000 kg
Floor flatnessStorage area: DIN 15.185; and expedition area: NEN 2747 class 5
Sustainability BREEAM-NL certificate, qualification ‘Very Good’
Loading docks 1:1000m2 docks equiped with electric overhead doors and electric hydraulic levellers (dynamic load 6.000 kg)
Dock shelters3500 mm x 3500 mm with bumpers and wheel guide alignment systems
Specifications truck yard Minimum 35m1 deep with concrete loading pit in front of the gates
On-grade door1 Electric On-grade door 4000 mm x 4500 mm per Unit
Mezzanine
Free height under mezzanine5,2m1
Depth mezzanine12m1
Location Above loading docks
Floor load capacity 600kg/m2
Office
SetupSeparate office per unit
ConfigurationLandscape offices in 2 layers
Inner free height2,7 m1
Floor load capacity400 kg/m2
Heating system Floorheating
Cooling systemVRF ceiling system
Ceiling and lighting systemSuspended ceiling with light fixtures 400 lux
Power cabeling and outlets Ample power sockets and provisioning for da ta cabling
Sanitary units Ample male and female toilet facilities in each unit equipped with hand bassins fixed into vanity units, mirrors and ceramic tiles upon 2m1 height
Elevatorno

With this development we aim for

BREEAM ‘ Very Good’

management
health
energy
transport
water
materials
waste
ecology
pollution
innovation
